Finite square lattice

In this example, the lattice is finite, consisting of 40 times 40 unit cells. Otherwise the sample model is the same as in the basic square lattice example.

Real-space model

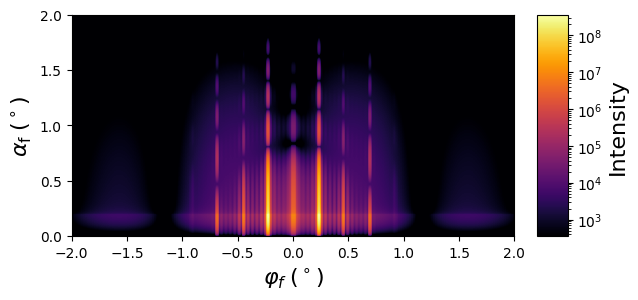

Scattering intensity

For comparison, scattering intensity with infinite lattice

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64

#!/usr/bin/env python3
"""
Cylinders on a 2D square lattice
"""
import bornagain as ba
from bornagain import ba_plot as bp, deg, nm, nm2


def get_sample():
    """
    A sample with cylinders on a substrate, forming a 2D square lattice.
    """

    # Materials
    material_particle = ba.RefractiveMaterial("Particle", 0.0006, 2e-08)
    material_substrate = ba.RefractiveMaterial("Substrate", 6e-06, 2e-08)
    vacuum = ba.RefractiveMaterial("Vacuum", 0, 0)

    # Form factors
    ff = ba.Cylinder(3*nm, 3*nm)

    # Particles
    particle = ba.Particle(material_particle, ff)

    # 2D lattices
    lattice = ba.BasicLattice2D(25*nm, 25*nm, 90*deg, 0)

    # Interference functions
    iff = ba.InterferenceFinite2DLattice(lattice, 40, 40)
    iff.setPositionVariance(1*nm2)

    # Particle layouts
    layout = ba.ParticleLayout()
    layout.addParticle(particle)
    layout.setInterference(iff)
    layout.setTotalParticleSurfaceDensity(0.0016)

    # Layers
    layer_1 = ba.Layer(vacuum)
    layer_1.addLayout(layout)
    layer_2 = ba.Layer(material_substrate)

    # Sample
    sample = ba.Sample()
    sample.addLayer(layer_1)
    sample.addLayer(layer_2)

    return sample


def get_simulation(sample):
    beam = ba.Beam(1e9, 0.1*nm, 0.2*deg)
    n = 200
    detector = ba.SphericalDetector(n, -2*deg, 2*deg, n, 0, 2*deg)
    simulation = ba.ScatteringSimulation(beam, sample, detector)
    return simulation


if __name__ == '__main__':
    sample = get_sample()
    simulation = get_simulation(sample)
    result = simulation.simulate()
    bp.plot_datafield(result)
    bp.plt.show()
auto/Examples/scatter2d/Interference2DSquareFiniteLattice.py
