Dense hemispheres

By default, layers containing embedded particles of different materials are regarded as composed by a single material using material averaging. This behavior is enabled by default and does not require explicit configuration.

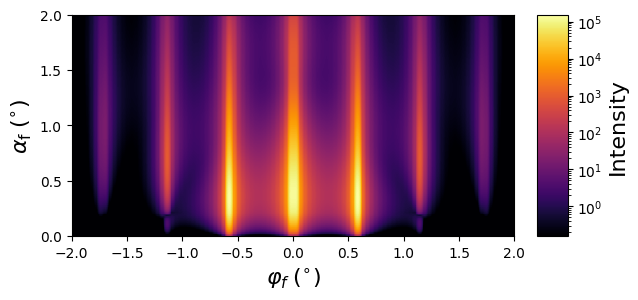

The figure shows the intensity map produced by the script below.

The script below shows how to average materials when simulating scattering from a square lattice of hemispheres on a substrate.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59

#!/usr/bin/env python3
"""
Square lattice of half spheres on substrate with usage of average material
and slicing
"""
import bornagain as ba
from bornagain import ba_plot as bp, deg, nm


def get_sample():
    """
    A sample with cylinders on a substrate.
    """

    # Materials
    material_particle = ba.RefractiveMaterial("Particle", 3e-05, 2e-08)
    material_substrate = ba.RefractiveMaterial("Substrate", 6e-06, 2e-08)
    vacuum = ba.Vacuum()

    # Particles
    ff = ba.SphericalSegment(5*nm, 0, 5*nm)
    particle = ba.Particle(material_particle, ff)

    # 2D lattices
    lattice = ba.BasicLattice2D(10*nm, 10*nm, 90*deg, 0)

    # Interference functions
    layout = ba.Crystal2D(particle, lattice)
    profile = ba.Profile2DCauchy(100*nm, 100*nm, 0)
    layout.setDecayFunction(profile)

    # Layers
    layer_1 = ba.Layer(vacuum)
    layer_1.setNumberOfSlices(10)
    layer_1.addStruct(layout)
    layer_2 = ba.Layer(material_substrate)

    # Sample
    sample = ba.Sample()
    sample.addLayer(layer_1)
    sample.addLayer(layer_2)

    return sample


def get_simulation(sample):
    beam = ba.Beam(1e9, 0.1*nm, 0.2*deg)
    n = 100
    detector = ba.SphericalDetector(n, -2*deg, 2*deg, n, 0, 2*deg)
    simulation = ba.ScatteringSimulation(beam, sample, detector)
    return simulation


if __name__ == '__main__':
    sample = get_sample()
    simulation = get_simulation(sample)
    result = simulation.simulate()
    bp.plot_datafield(result, unit_aspect=1)
    bp.plt.show()
auto/Examples/scatter2d/HalfSpheresInAverageTopLayer.py
