#!/usr/bin/env python3
# /// script
# requires-python = ">=3.10"
# dependencies = ["bornagain>=25,<26"]
# ///
"""
Off-specular polarized neutron scattering from magnetic stripe domains.
The geometry follows the domain model from Saerbeck et al.,
Nanomaterials 10, 752 (2020): a CoFe/IrMn thin-film stack with a
periodic head-to-head/tail-to-tail stripe pattern in the CoFe layer.
"""
from math import cos, sin
import bornagain as ba
ba.require_versions("bornagain>=25,<26")
from bornagain import R3, deg, micrometer, nm
colors = {
"TaOx": (0.72, 0.72, 0.72),
"Ta": (0.45, 0.45, 0.48),
"CoFe": (0.48, 0.32, 0.80),
"IrMn": (0.86, 0.24, 0.18),
"Cu": (0.94, 0.54, 0.20),
"SiO2": (0.28, 0.57, 0.82),
"Si": (0.35, 0.35, 0.35),
}
sld = {
"TaOx": (5.54e-6, 3.3e-9),
"Ta": (3.52e-6, 3.3e-9),
"CoFe": (4.17e-6, 3.7e-9),
"IrMn": (-0.74e-6, 18.2e-9),
"Cu": (5.57e-6, 0.7e-9),
"SiO2": (3.66e-6, 0.012e-9),
"Si": (2.10e-6, 0.023e-9),
}
thickness = {
"TaOx": 3.1*nm,
"Ta": 8.3*nm,
"CoFe": 6.1*nm,
"IrMn": 29.6*nm,
"Cu": 3.7*nm,
"SiO2": 1.0*nm,
"Si": None,
}
def B(Bmag, Bangle_deg):
Bangle = Bangle_deg*deg
return R3(Bmag*sin(Bangle), Bmag*cos(Bangle), 0)
def stripes_layout():
stripe_length = 1000*micrometer
Bmag = 1.71e6
width_right = 5.3*micrometer
formfactor_right = ba.Box(width_right, stripe_length, thickness["CoFe"])
m_right = ba.SLDMaterial("CoFe_right", colors["CoFe"], *sld["CoFe"], B(Bmag, 89))
stripe_right = ba.Particle(m_right, formfactor_right)
width_left = 3.7*micrometer
formfactor_left = ba.Box(width_left, stripe_length, thickness["CoFe"])
m_left = ba.SLDMaterial("CoFe_left", colors["CoFe"], *sld["CoFe"], B(Bmag, -82))
stripe_left = ba.Particle(m_left, formfactor_left)
width_wall = 0.6*micrometer
formfactor_wall = ba.Box(width_wall, stripe_length, thickness["CoFe"])
m_wall = ba.SLDMaterial("CoFe_wall", colors["CoFe"], *sld["CoFe"], B(Bmag, 0))
stripe_wall = ba.Particle(m_wall, formfactor_wall)
cell = ba.Compound()
cell.addComponent(stripe_right)
cell.addComponent(stripe_wall, R3(width_right, 0, 0))
cell.addComponent(stripe_left, R3(width_right + width_wall, 0, 0))
cell.addComponent(stripe_wall, R3(width_right + width_wall + width_left, 0, 0))
period = width_right + width_left + 2*width_wall
layout = ba.Crystal1D(cell, period, 0, (1 - 1e-9)/stripe_length)
layout.setDecayFunction(ba.Profile1DCauchy(6*period))
return layout
def get_sample():
material_taox = ba.SLDMaterial("TaOx", colors["TaOx"], *sld["TaOx"])
material_ta = ba.SLDMaterial("Ta", colors["Ta"], *sld["Ta"])
material_cofe = ba.SLDMaterial("CoFe", colors["CoFe"], *sld["CoFe"])
material_irmn = ba.SLDMaterial("IrMn_nm", colors["IrMn"], *sld["IrMn"], B(0, 0))
material_cu = ba.SLDMaterial("Cu", colors["Cu"], *sld["Cu"])
material_sio2 = ba.SLDMaterial("SiO2", colors["SiO2"], *sld["SiO2"])
material_si = ba.SLDMaterial("Si", colors["Si"], *sld["Si"])
sample = ba.Sample()
sample.addLayer(ba.Layer(ba.Vacuum()))
sample.addLayer(ba.Layer(material_taox, thickness["TaOx"]))
sample.addLayer(ba.Layer(material_ta, thickness["Ta"]))
layer_cofe = ba.Layer(material_cofe, thickness["CoFe"])
layer_cofe.deposit2D(stripes_layout())
sample.addLayer(layer_cofe)
sample.addLayer(ba.Layer(material_irmn, thickness["IrMn"]))
sample.addLayer(ba.Layer(material_cu, thickness["Cu"]))
sample.addLayer(ba.Layer(material_sio2, thickness["SiO2"]))
sample.addLayer(ba.Layer(material_si))
return sample
def get_simulation(sample, grazing_angle, alpha_f_min, alpha_f_max, polarization):
nlambda = 115
nalpha = 115
scan = ba.LambdaScan(nlambda, 0.4*nm, 2.0*nm)
scan.setIntensity(1)
scan.setGrazingAngle(grazing_angle)
scan.setPolarization(polarization)
beam_divergence = ba.DistributionLorentz(
0, 0.01*deg, 9, 5)
scan.setGrazingAngleDistribution(beam_divergence)
phi_range = 0.0001*deg
detector = ba.OffspecDetector(
nalpha, alpha_f_min, alpha_f_max, -phi_range/2, +phi_range/2)
simulation = ba.OffspecSimulation(scan, sample, detector)
simulation.options().setIncludeSpecular(True)
simulation.options().setOffspecIntegratorOptions(
"AdaptiveGaussKronrod",
{
"max_subintervals": 100,
"abs_tolerance": 1e-3,
"rel_tolerance": 1e-2,
"GK_rule": 2,
})
return simulation
def simulate(grazing_angle, alpha_f_min, alpha_f_max, polarization, title):
sample = get_sample()
simulation = get_simulation(
sample, grazing_angle, alpha_f_min, alpha_f_max, polarization)
result = simulation.simulate()
result = ba.FrameTrafo.Transpose(result)
result.setTitle(title)
return result
if __name__ == '__main__':

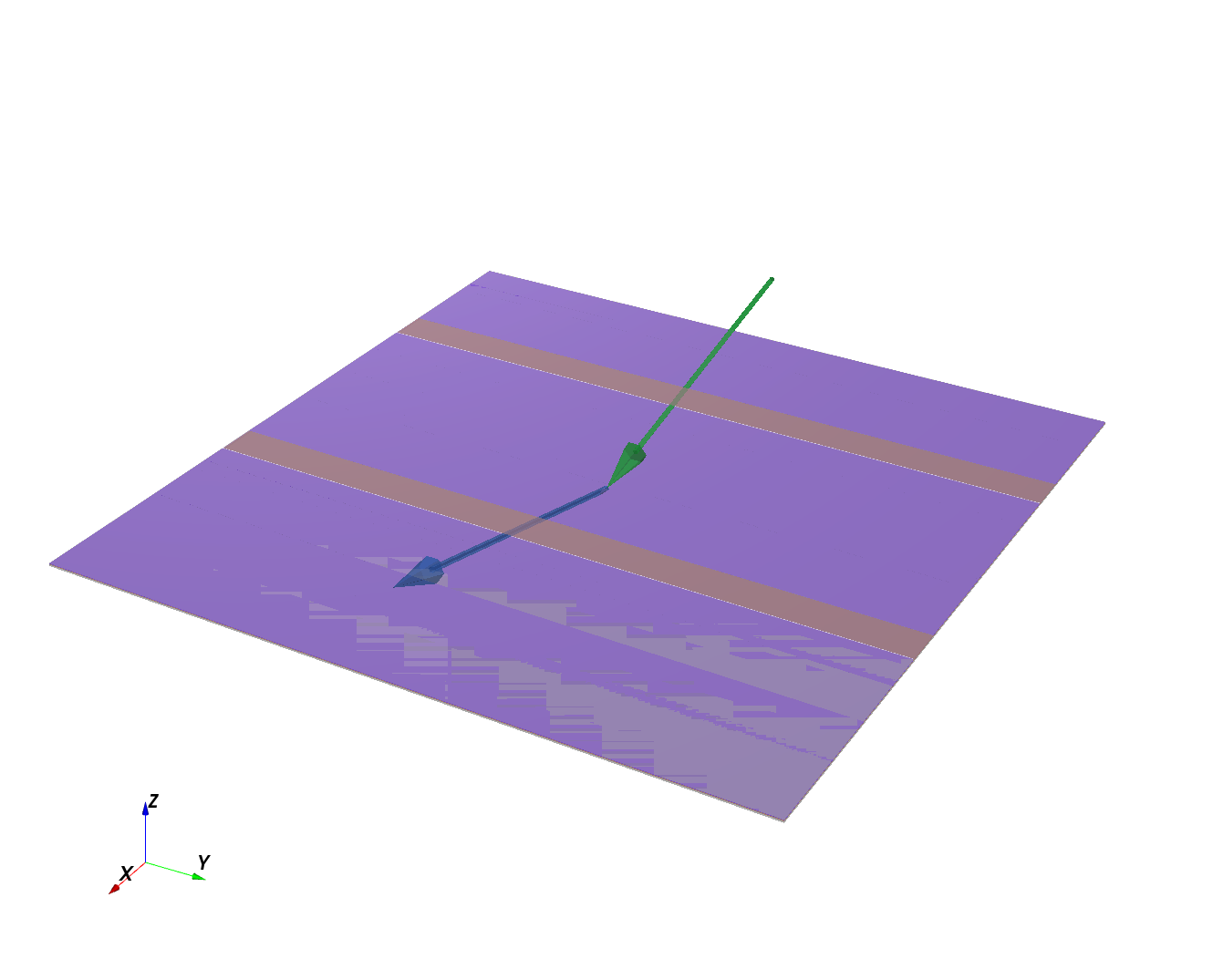

ba.showSample3D(get_sample(), sample_size=25*micrometer, seed=0)
pol = R3(0, +1, 0)
results = [
simulate(0.5*deg, 0.2*deg, 2.0*deg, pol, r"$R^+$, $\theta_i=0.5^\circ$"),
simulate(1.5*deg, 0.2*deg, 3.0*deg, pol, r"$R^+$, $\theta_i=1.5^\circ$"),
]
max_val = max(result.maxVal() for result in results)
intensity_max = max_val/4
intensity_min = intensity_max/10**4.5
ba.plot2d_to_row(
results,
cmap="jet",
intensity_max=intensity_max,
intensity_min=intensity_min,
frame_aspect=1)
ba.plt.show()
|
