Holes lattice ref

Result

Holes lattice ref result

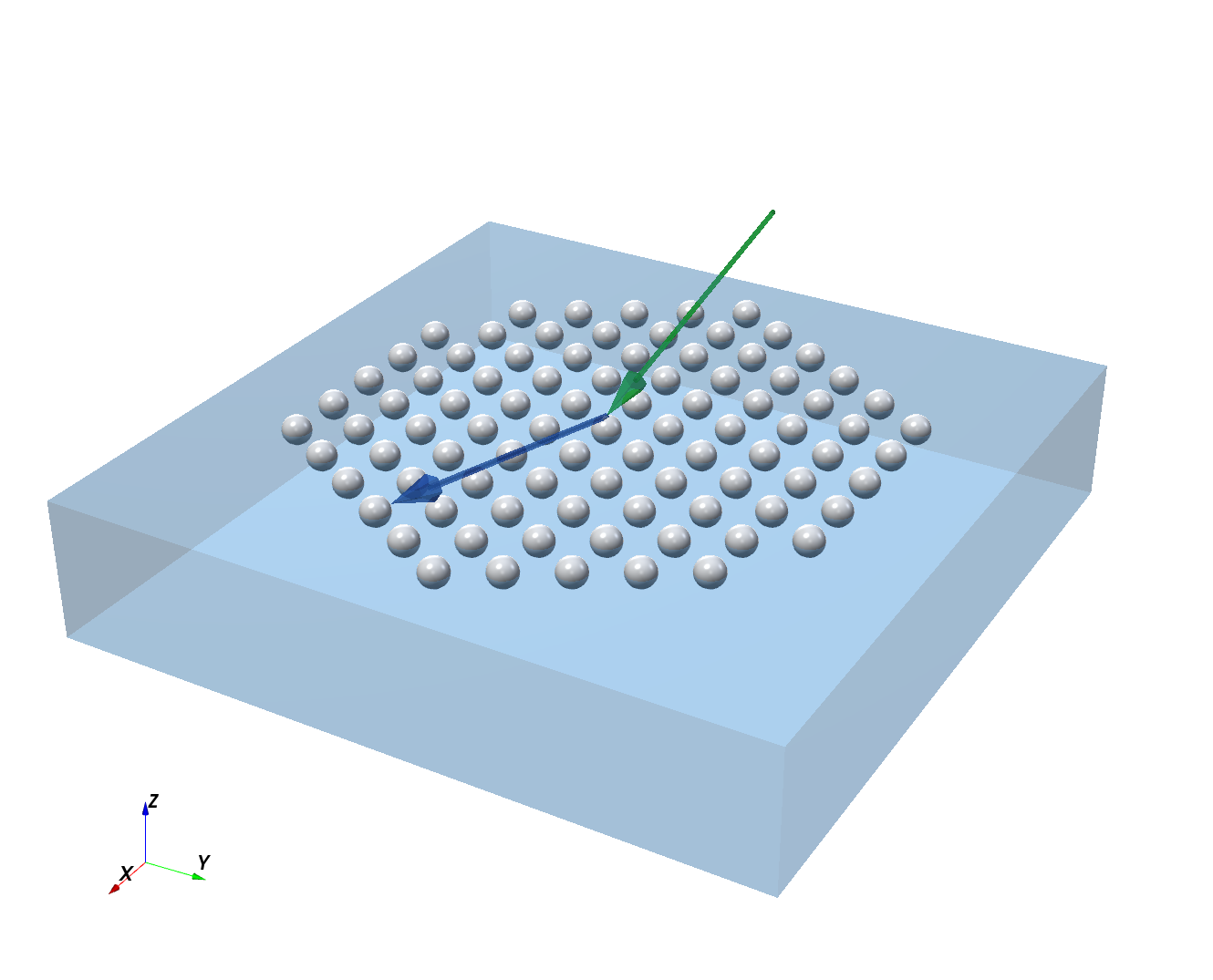

Sample

Holes lattice ref sample

Python script

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69

#!/usr/bin/env python3
# /// script
# requires-python = ">=3.10"
# dependencies = ["bornagain>=25,<26"]
# ///
"""
Reference for HolesLattice: same computation using deposit2D with translation.

This example produces the same result as HolesLattice.py but uses deposit2D
in the vacuum layer with the particle translated downward by R, instead of
suspend2D in the substrate layer.
"""
import bornagain as ba
ba.require_versions("bornagain>=25,<26")
from bornagain import deg, nm, R3


def get_sample():
    """
    Substrate with hemispherical holes arranged in a hexagonal lattice.
    The holes are vacuum half-spheres deposited in the vacuum layer and
    translated downward by R to position them at the interface.
    """
    # Materials
    substrate_color = (0.28, 0.57, 0.82)
    substrate_mat = ba.RefractiveMaterial("Substrate", substrate_color, 6e-6, 2e-8)
    vacuum = ba.Vacuum()

    # Hemispherical hole (vacuum half-sphere, spanning from -R to 0)
    R = 5*nm
    ff = ba.SphericalSegment(R, R, 0)  # radius, top_cut=R, bottom_cut=0
    hole = ba.Particle(vacuum, ff)
    hole.translate(R3(0, 0, -R))  # Translate down by R

    # Hexagonal lattice
    lattice = ba.HexagonalLattice2D(20*nm, 0)
    layout = ba.Crystal2D(hole, lattice)
    profile = ba.Profile2DCauchy(100*nm, 100*nm, 0)
    layout.setDecayFunction(profile)

    # Layers
    vacuum_layer = ba.Layer(vacuum)
    vacuum_layer.deposit2D(layout)
    substrate_layer = ba.Layer(substrate_mat)
    substrate_layer.setNumberOfSlices(6)

    # Sample
    sample = ba.Sample()
    sample.addLayer(vacuum_layer)
    sample.addLayer(substrate_layer)

    return sample


def get_simulation(sample):
    beam = ba.Beam(1e9, 0.1*nm, 0.2*deg)
    n = 200
    detector = ba.SphericalDetector(n, -2*deg, 2*deg, n, 0, 2*deg)
    simulation = ba.ScatteringSimulation(beam, sample, detector)
    return simulation


if __name__ == '__main__':
    sample = get_sample()
    ba.showSample3D(sample, sample_size=250*nm, seed=0)
    simulation = get_simulation(sample)
    result = simulation.simulate()
    ba.plot_datafield(result, unit_aspect=1)
    ba.plt.show()
auto/Examples/gisas/order/HolesLatticeRef.py
