Magnetic cylinders

Result

Magnetic cylinders result

Sample

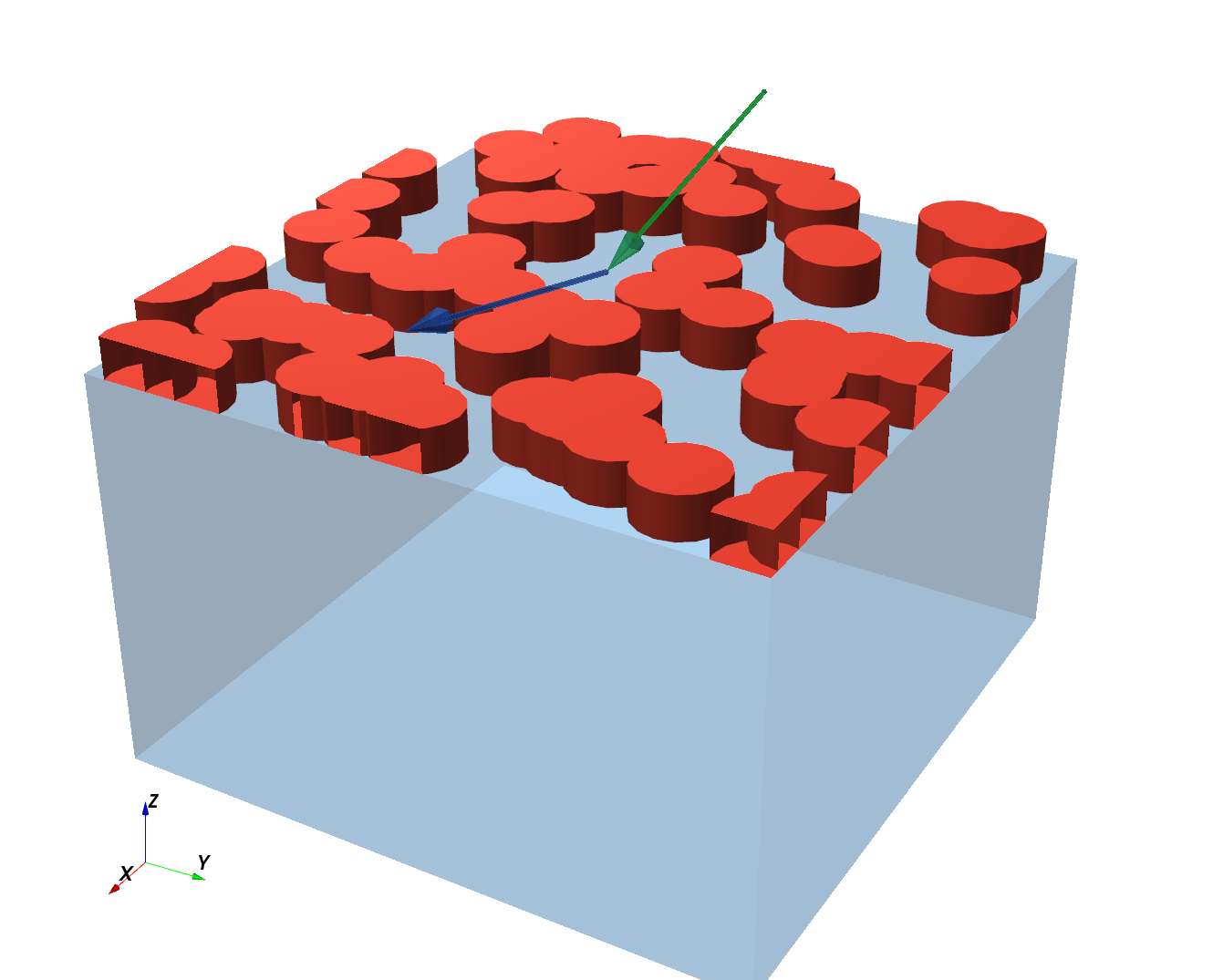

Magnetic cylinders sample

Python script

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73

#!/usr/bin/env python3
# /// script
# requires-python = ">=3.10"
# dependencies = ["bornagain>=25,<26"]
# ///
"""
Magnetic cylinders in DWBA
"""
import bornagain as ba
ba.require_versions("bornagain>=25,<26")
from bornagain import deg, R3, nm, nm2


def get_sample():
    # Materials
    vacuum = ba.Vacuum()
    substrate_color = (0.28, 0.57, 0.82)
    substrate_mat = ba.RefractiveMaterial("Substrate", substrate_color, 15e-6, 0)
    B = R3(0, 1e6, 0)
    particle_color = (0.86, 0.24, 0.18)
    particle_mat = ba.RefractiveMaterial("magParticle", particle_color, 5e-6, 0, B)

    # Particles
    ff = ba.Cylinder(5*nm, 5*nm)
    particle = ba.Particle(particle_mat, ff)

    # Multilayer
    vacuum_layer = ba.Layer(vacuum)
    vacuum_layer.deposit2D(ba.Dilute2D(0.01/nm2, particle))
    substrate_layer = ba.Layer(substrate_mat)
    sample = ba.Sample()
    sample.addLayer(vacuum_layer)
    sample.addLayer(substrate_layer)

    return sample


def get_simulation(sample, pol_dir, an_dir):
    n = 100
    beam = ba.Beam(1e9, 0.1*nm, 0.2*deg)
    detector = ba.SphericalDetector(n, -1*deg, 1*deg, n, 0, 2*deg)

    beam.setPolarization(pol_dir)
    detector.setAnalyzer(an_dir)

    return ba.ScatteringSimulation(beam, sample, detector)


def simulate(pol_dir, an_dir):
    sample = get_sample()
    simulation = get_simulation(sample, pol_dir, an_dir)
    return simulation.simulate()


if __name__ == '__main__':
    z_up = R3(0, 0, 1)
    z_dn = R3(0, 0, -1)
    results = [
        simulate(z_up, z_up),
        simulate(z_up, z_dn),
        simulate(z_dn, z_up),
        simulate(z_dn, z_dn)
    ]
    labels = ['$++$', '$+-$', '$-+$', '$--$']
    ba.showSample3D(get_sample(), sample_size=80*nm, seed=0)
    fontsize = 16
    ba.plot2d_to_grid(results, 2, fontsize=fontsize, unit_aspect=1)
    # Add labels inside each subplot
    fig = ba.plt.gcf()
    for i, ax in enumerate(fig.axes[:4]):
        ax.text(0.5, 0.92, labels[i], transform=ax.transAxes,
                fontsize=fontsize * 2.4, color='white', ha='center', va='top')
    ba.plt.show()
auto/Examples/gisas/magnetic/MagneticCylinders.py
