Compound plus

Result

Compound plus result

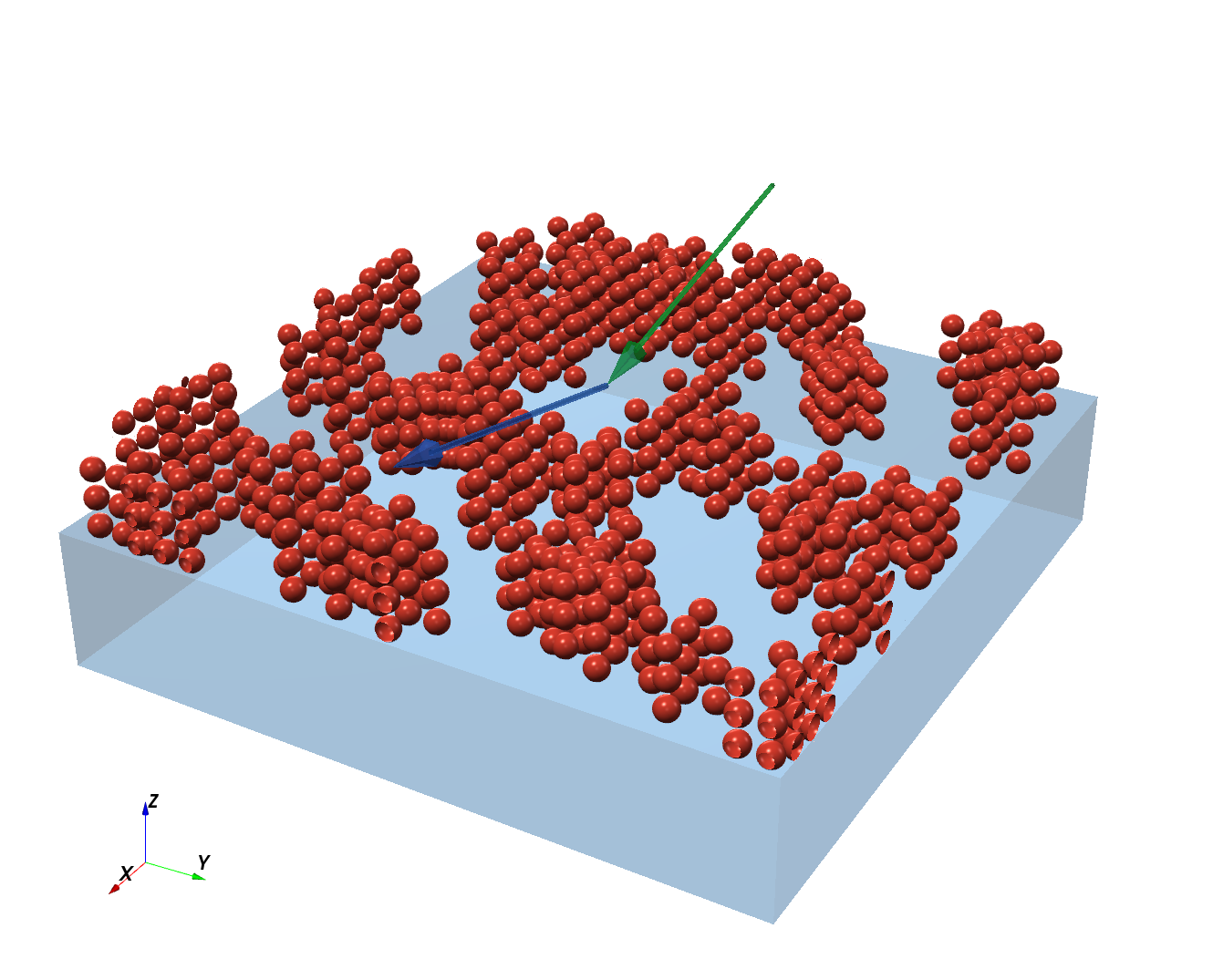

Sample

Compound plus sample

Python script

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70

#!/usr/bin/env python3
# /// script
# requires-python = ">=3.10"
# dependencies = ["bornagain>=25,<26"]
# ///
"""
GISAS of a 3D array of spheres enclosed in a cylindrical envelope.

Spheres of radius 4 nm are placed on a 10 nm cubic grid within a
cylinder of radius (n_lim+0.5)·L and height (2·n_lim+1)·L. The
resulting clusters are deposited at low density (Dilute2D).
"""
import bornagain as ba
ba.require_versions("bornagain>=25,<26")
from bornagain import deg, nm, R3


def get_sample():
    particle_color = (0.86, 0.24, 0.18)
    particle_mat = ba.RefractiveMaterial("Particle", particle_color, 6e-4, 2e-8)
    substrate_color = (0.28, 0.57, 0.82)
    substrate_mat = ba.RefractiveMaterial("Substrate", substrate_color, 6e-6, 2e-8)
    vacuum = ba.Vacuum()

    n_lim = 1
    L = 10 * nm
    R = 4 * nm

    ff = ba.Sphere(R)
    sphere = ba.Particle(particle_mat, ff)

    size = L * (2 * n_lim + 1 - 1) + 2 * R
    outer_r = size / 2

    positions = []
    for i in range(-n_lim, n_lim + 1):
        for j in range(-n_lim, n_lim + 1):
            for k in range(0, 2 * n_lim + 1):
                x, y, z = i * L, j * L, k * L
                if x**2 + y**2 <= outer_r**2 and 0 <= z <= size:
                    positions.append(R3(x, y, z))

    basis = ba.Compound()
    basis.addComponents(sphere, positions)

    vacuum_layer = ba.Layer(vacuum)
    substrate_layer = ba.Layer(substrate_mat)
    vacuum_layer.deposit2D(ba.Dilute2D(0.001, basis))

    sample = ba.Sample()
    sample.addLayer(vacuum_layer)
    sample.addLayer(substrate_layer)
    return sample


def get_simulation(sample):
    beam = ba.Beam(1e9, 0.1*nm, 0.2*deg)
    n = 200
    detector = ba.SphericalDetector(n, -2*deg, 2*deg, n, 0, 2*deg)
    simulation = ba.ScatteringSimulation(beam, sample, detector)
    return simulation


if __name__ == '__main__':
    sample = get_sample()
    ba.showSample3D(sample, sample_size=250*nm, seed=0)
    simulation = get_simulation(sample)
    result = simulation.simulate()
    ba.plot_datafield(result, unit_aspect=1)
    ba.plt.show()
auto/Examples/gisas/sample/CompoundPlus.py
