#!/usr/bin/env python3
# /// script
# requires-python = ">=3.10"
# dependencies = ["bornagain>=25,<26"]
# ///
"""

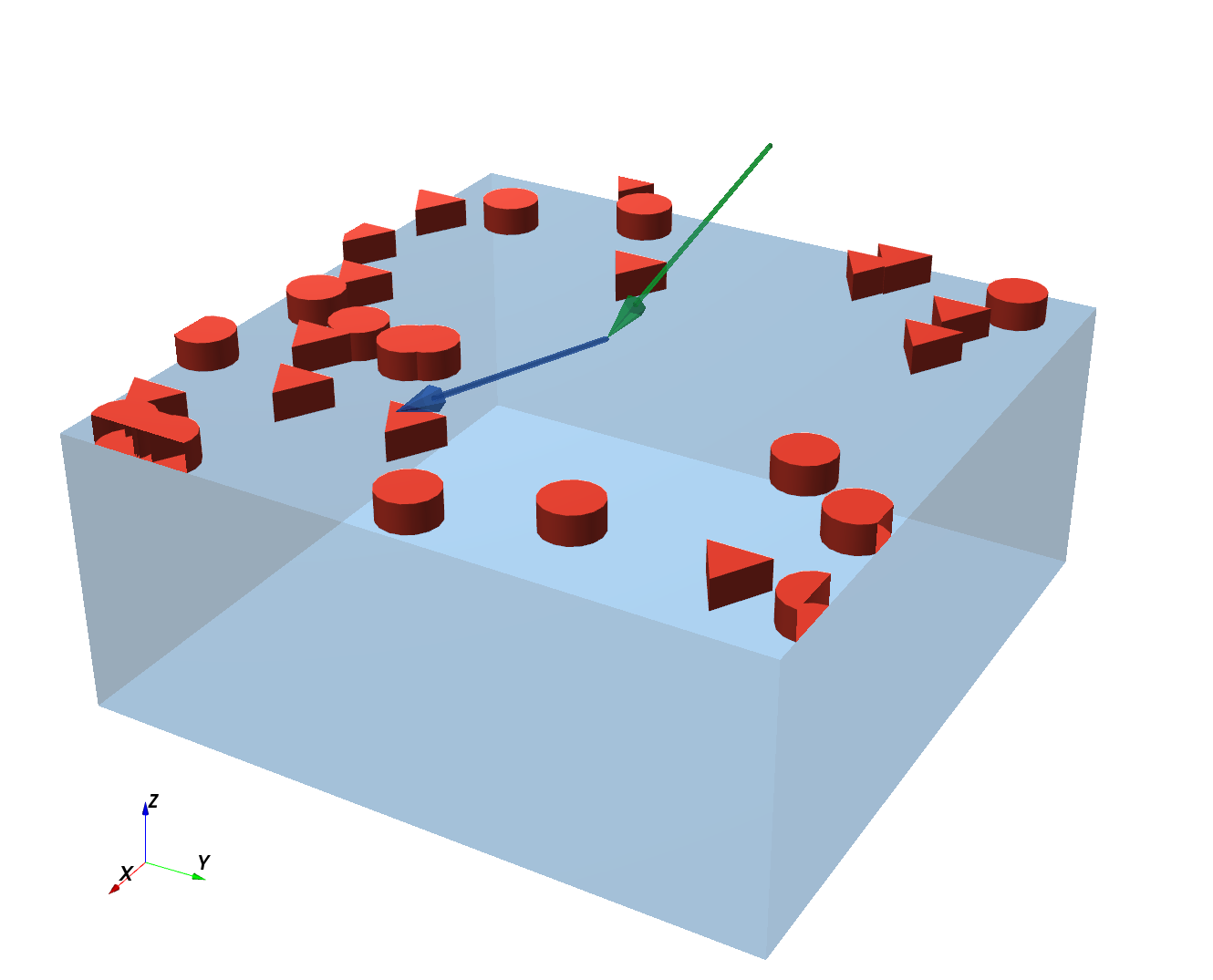

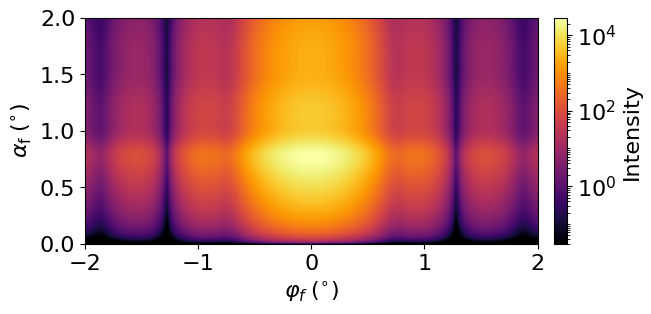

GISAS with two particle layouts on the same layer.
Cylinders (5 × 5 nm) and triangular prisms (10 nm base, 5 nm height)
are deposited independently on the same vacuum layer at equal density.
Each layout uses Dilute2D (no interference between particles).
"""
import bornagain as ba
ba.require_versions("bornagain>=25,<26")
from bornagain import deg, nm
def get_sample():
particle_color = (0.86, 0.24, 0.18)
particle_mat = ba.RefractiveMaterial("Particle", particle_color, 6e-4, 2e-8)
substrate_color = (0.28, 0.57, 0.82)
substrate_mat = ba.RefractiveMaterial("Substrate", substrate_color, 6e-6, 2e-8)
vacuum = ba.Vacuum()
cylinder = ba.Particle(particle_mat, ba.Cylinder(5 * nm, 5 * nm))
prism = ba.Particle(particle_mat, ba.Prism3(10 * nm, 5 * nm))
vacuum_layer = ba.Layer(vacuum)
vacuum_layer.deposit2D(ba.Dilute2D(0.001, cylinder))
vacuum_layer.deposit2D(ba.Dilute2D(0.001, prism))
substrate_layer = ba.Layer(substrate_mat)
sample = ba.Sample()
sample.addLayer(vacuum_layer)
sample.addLayer(substrate_layer)
return sample
def get_simulation(sample):
beam = ba.Beam(1e9, 0.1*nm, 0.2*deg)
n = 200
detector = ba.SphericalDetector(n, -2*deg, 2*deg, n, 0, 2*deg)
simulation = ba.ScatteringSimulation(beam, sample, detector)
return simulation
if __name__ == '__main__':
sample = get_sample()
ba.showSample3D(sample, sample_size=120*nm, seed=0)
simulation = get_simulation(sample)
result = simulation.simulate()
ba.plot_datafield(result, unit_aspect=1)
ba.plt.show()
|
