#!/usr/bin/env python3
# /// script
# requires-python = ">=3.10"
# dependencies = ["bornagain>=25,<26"]
# ///
"""
1D depth profile at fixed angle showing standing wave pattern.
"""
import bornagain as ba
ba.require_versions("bornagain>=25,<26")
from bornagain import deg, nm
# beam data
ai_fixed = 0.0044*deg # fixed angle where maximum occurs
wl = 0.03*nm # wavelength
# depth position span
z_min = -350*nm
z_max = 250*nm
def get_sample():
# Define materials
vac_color = (0.90, 0.93, 0.97)
vac_mat = ba.RefractiveMaterial("Vac", vac_color, 0, 0)
a_color = (0.05, 0.62, 0.55)
a_mat = ba.RefractiveMaterial("A", a_color, 1e-5, 3e-6)
# Define layers
layer_top = ba.Layer(vac_mat)
layer_1 = ba.Layer(a_mat, 300*nm)
layer_bot = ba.Layer(vac_mat)
# Define sample
sample = ba.Sample()
sample.addLayer(layer_top)
sample.addLayer(layer_1)
sample.addLayer(layer_bot)
return sample
def get_simulation(sample):
"""
Returns a depth-probe simulation at a single angle.
"""
nz = 500
na = 1 # Just one angle
scan = ba.AlphaScan(na, ai_fixed, ai_fixed)
scan.setWavelength(wl)
footprint = ba.FootprintSquare(0.01)
scan.setFootprint(footprint)
z_axis = ba.EquiDivision("z (nm)", nz, z_min, z_max)
simulation = ba.DepthprobeSimulation(scan, sample, z_axis)
return simulation
if __name__ == '__main__':
sample = get_sample()
simulation = get_simulation(sample)
result = simulation.simulate()

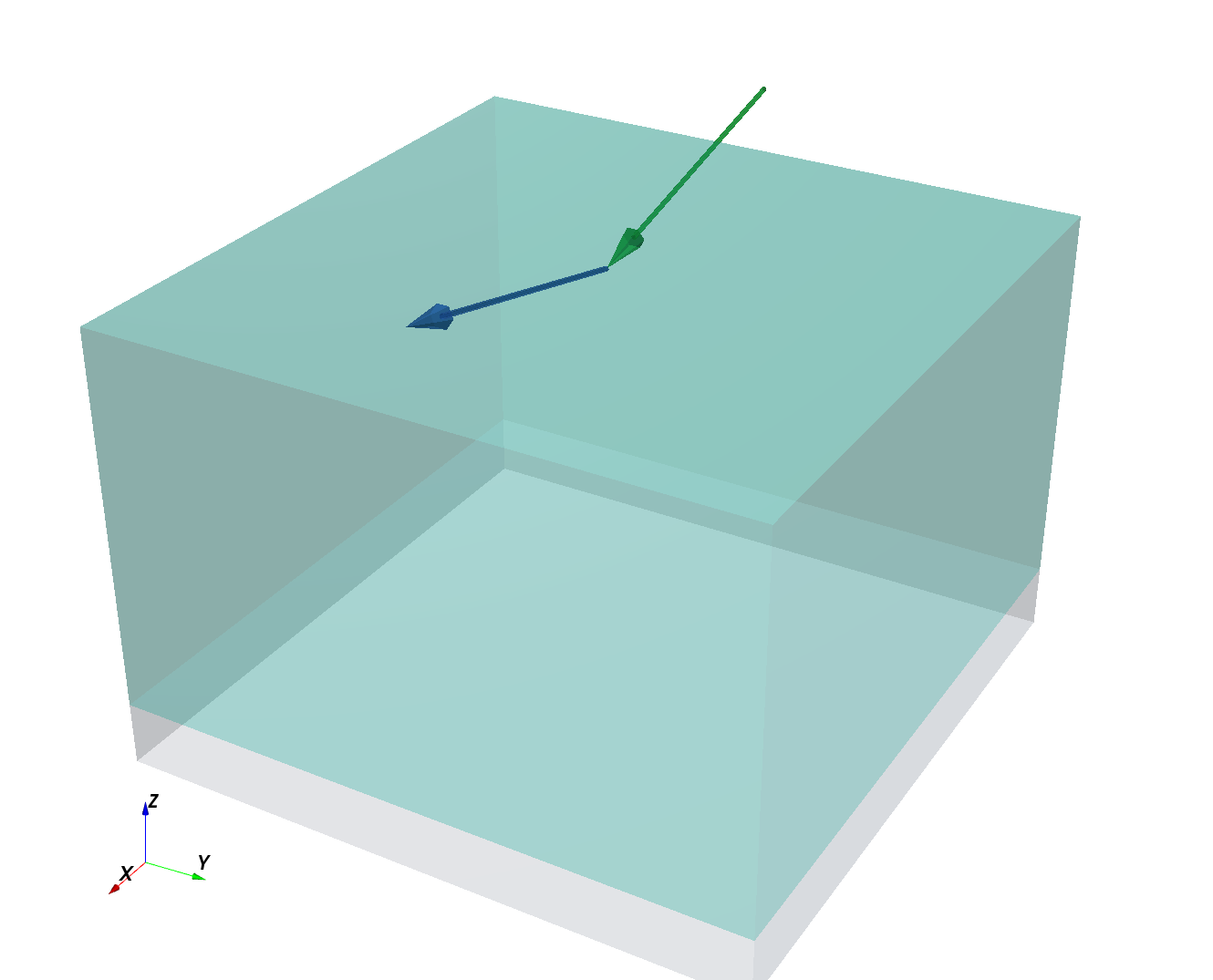

ba.showSample3D(sample, sample_size=500*nm, seed=0)
import numpy as np
# Extract 1D data
data = result.intensities()
intensity = data.flatten()
z_axis = result.axis(1)
z_values = np.linspace(z_axis.min(), z_axis.max(), z_axis.size()) / nm
# Custom plot for 1D profile
ba.plt.figure(figsize=(10, 6))
ax = ba.plt.gca()
ax.plot(z_values, intensity, 'b-', linewidth=2)
ax.axvline(x=0, color='gray', linestyle=':', linewidth=1)
ax.axvline(x=-300, color='gray', linestyle=':', linewidth=1)
# Shade regions
ax.axvspan(z_min/nm, -300, alpha=0.1, color='blue', label='Bottom vacuum')
ax.axvspan(-300, 0, alpha=0.1, color='orange', label='Material A (300nm)')
ax.axvspan(0, z_max/nm, alpha=0.1, color='blue', label='Top vacuum')
ax.set_xlabel('Depth z (nm)', fontsize=14)
ax.set_ylabel('Intensity', fontsize=14)
title = f'Depth Profile at α = {ai_fixed/deg:.6f}°'
ax.set_title(title, fontsize=16)
ax.grid(True, alpha=0.3)
ax.legend(fontsize=10)
ax.set_ylim([0, max(intensity)*1.1])
ba.plt.tight_layout()
ba.plt.show()
|
