Core shell nanoparticles

This example simulates dilute cuboidal core-shell particles. The smaller box is placed inside the larger shell with their bottom-face centers aligned, and the sample uses identical materials for the top and the bottom layer to isolate particle scattering from substrate contrast.

An alternative example builds the same type of two-material geometry explicitly as a Compound composition instead of using CoreAndShell.

Result

Core shell nanoparticles result

Sample

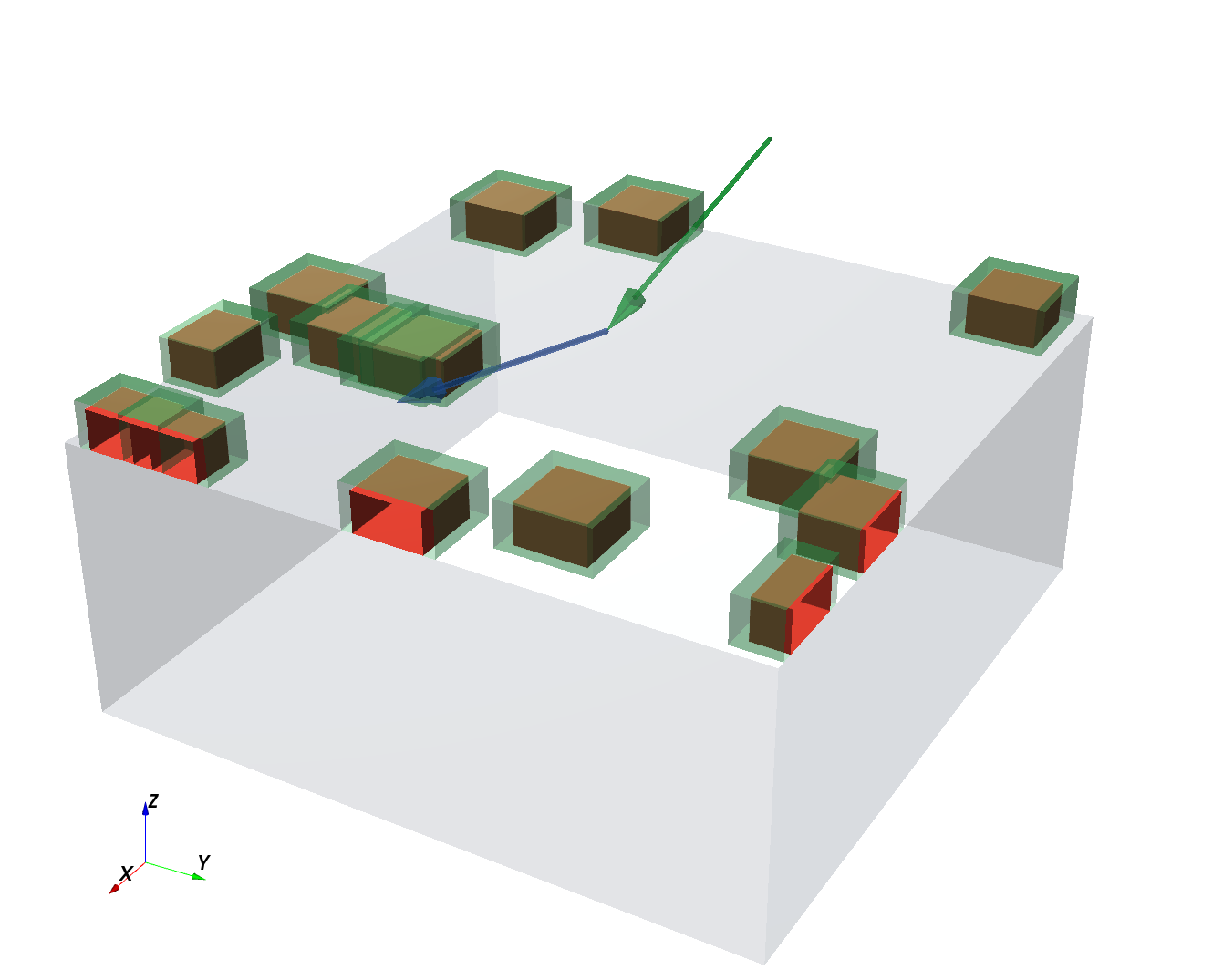

Core shell nanoparticles sample

Python script

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
#!/usr/bin/env python3
# /// script
# requires-python = ">=3.10"
# dependencies = ["bornagain>=25,<26"]
# ///
"""
Core shell nanoparticles
"""
import bornagain as ba
ba.require_versions("bornagain>=25,<26")
from bornagain import deg, nm


def get_sample():
    """
    A sample with box-shaped core-shell particles on top of air.
    """

    # Materials
    core_color = (0.86, 0.24, 0.18)
    core_mat = ba.RefractiveMaterial("Core", core_color, 6e-6, 2e-8)
    shell_color = (0.25, 0.65, 0.35)
    shell_mat = ba.RefractiveMaterial("Shell", shell_color, 1e-5, 2e-8)

    # Form factors
    ff_1 = ba.Box(12*nm, 12*nm, 7*nm)
    ff_2 = ba.Box(16*nm, 16*nm, 8*nm)

    # Particles
    core = ba.Particle(core_mat, ff_1)
    shell = ba.Particle(shell_mat, ff_2)
    particle = ba.CoreAndShell(core, shell)

    # Sample with particles in vacuum over vacuum substrate
    layer_1 = ba.Layer(ba.Vacuum())
    layer_1.deposit2D(ba.Dilute2D(0.001, particle))
    layer_2 = ba.Layer(ba.Vacuum())

    sample = ba.Sample()
    sample.addLayer(layer_1)
    sample.addLayer(layer_2)
    return sample


def get_simulation(sample):
    beam = ba.Beam(1e9, 0.1*nm, 0.2*deg)
    n = 200
    detector = ba.SphericalDetector(n, -1*deg, 1*deg, n, 0., 2*deg)
    simulation = ba.ScatteringSimulation(beam, sample, detector)
    return simulation


if __name__ == '__main__':
    sample = get_sample()
    ba.showSample3D(sample, sample_size=120*nm, seed=0)
    simulation = get_simulation(sample)
    result = simulation.simulate()
    ba.plot_datafield(result, unit_aspect=1)
    ba.plt.show()
auto/Examples/gisas/sample/CoreShellNanoparticles.py
