Box composition rotate Z

Result

Box composition rotate Z result

Sample

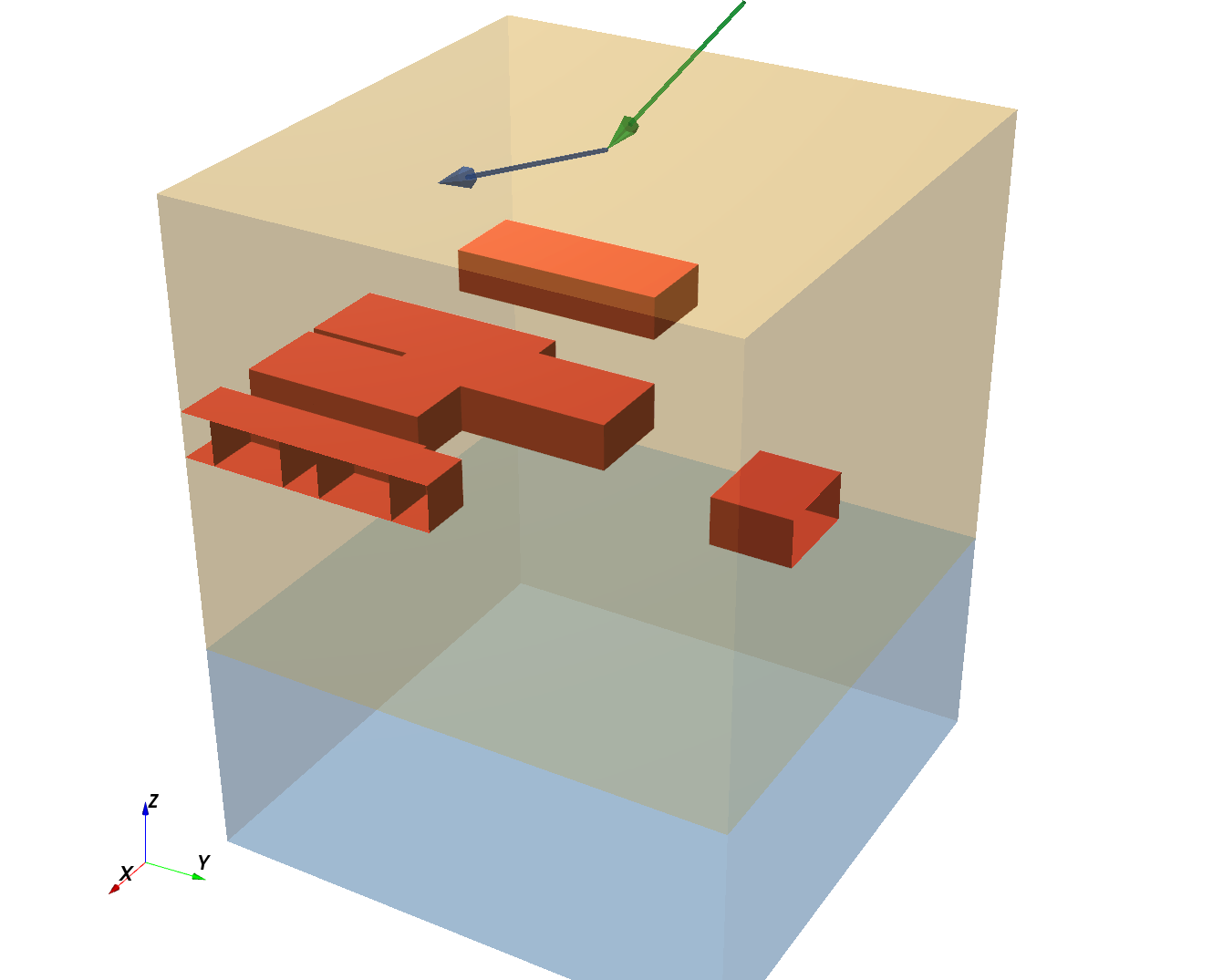

Box composition rotate Z sample

Python script

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65

#!/usr/bin/env python3
# /// script
# requires-python = ">=3.10"
# dependencies = ["bornagain>=25,<26"]
# ///
"""
GISAS of two boxes side-by-side, with the pair rotated 90° around Z.

Two half-length boxes (25 × 20 × 10 nm) form a composition that is
rotated 90° around the Z-axis and embedded in a 100 nm Teflon layer.
"""
import bornagain as ba
ba.require_versions("bornagain>=25,<26")
from bornagain import deg, nm, R3

layer_thickness = 100 * nm
length = 50 * nm
width = 20 * nm
height = 10 * nm


def get_sample():
    vacuum = ba.Vacuum()
    particle_color = (0.86, 0.24, 0.18)
    particle_mat = ba.RefractiveMaterial("Ag", particle_color, 1.245e-5, 5.419e-7)
    teflon_color = (0.93, 0.72, 0.25)
    teflon_mat = ba.RefractiveMaterial("Teflon", teflon_color, 2.9e-6, 6.019e-9)
    substrate_color = (0.24, 0.50, 0.74)
    substrate_mat = ba.RefractiveMaterial(
        "Substrate2", substrate_color, 3.212e-6, 3.244e-8)

    box = ba.Particle(particle_mat, ba.Box(length / 2, width, height))
    composition = ba.Compound()
    composition.addComponent(box, R3())
    composition.addComponent(box, R3(length / 2, 0, 0))
    composition.rotate(ba.RotationZ(90 * deg))
    composition.translate(R3(0, 0, -layer_thickness / 2 - height / 2))

    vacuum_layer = ba.Layer(vacuum)
    middle_layer = ba.Layer(teflon_mat, layer_thickness)
    substrate_layer = ba.Layer(substrate_mat)
    vacuum_layer.deposit2D(ba.Dilute2D(5e-4, composition))

    sample = ba.Sample()
    sample.addLayer(vacuum_layer)
    sample.addLayer(middle_layer)
    sample.addLayer(substrate_layer)
    return sample


def get_simulation(sample):
    beam = ba.Beam(1e9, 0.1*nm, 0.2*deg)
    n = 200
    detector = ba.SphericalDetector(n, -2*deg, 2*deg, n, 0, 2*deg)
    simulation = ba.ScatteringSimulation(beam, sample, detector)
    return simulation


if __name__ == '__main__':
    sample = get_sample()
    ba.showSample3D(sample, sample_size=120*nm, seed=0)
    simulation = get_simulation(sample)
    result = simulation.simulate()
    ba.plot_datafield(result, unit_aspect=1)
    ba.plt.show()
auto/Examples/gisas/sample/BoxCompositionRotateZ.py
